Competencies covered

MSFFL2006: Prepare, select and apply smoothing and patching compounds

MSFFL2007: Select and apply appropriate compounds and additives

MSFFL2009: Select, prepare and apply moisture barriers and damp proof membranes to concrete sub-floors

Types of levelling compounds

Image for slide 1
Audio for slide 1 (mp3 |6|KB)

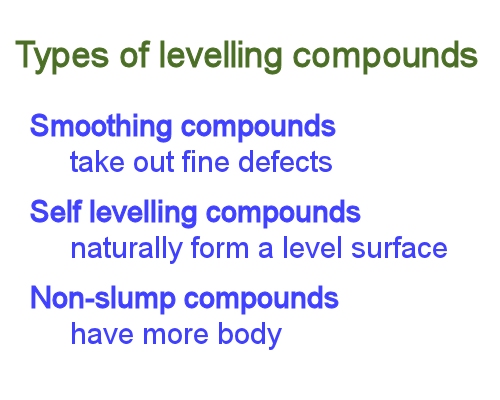

Some people use the term 'levelling compound' to refer to the whole range of products used to patch, smooth and level a floor.

But this general term can be subdivided into three more specific categories - smoothing, self-levelling and non-slump compounds.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)
Smoothing compounds are thinly skimmed on the concrete surface as a top coat to take out fine defects in localised areas.

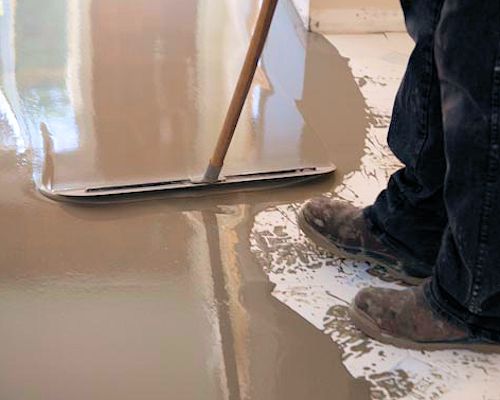

Self levelling compounds are used to smooth and level an entire floor area. They are poured onto the floor and naturally form a level surface once they've been spread evenly.

Non-slump compounds have more body, so they tend to stand up higher when placed on the floor. They are used for smoothing, creating 'falls' towards a floor waste, creating ramps up to a higher floor level, filling uneven areas of the floor, and repairing holes, cracks and defects.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

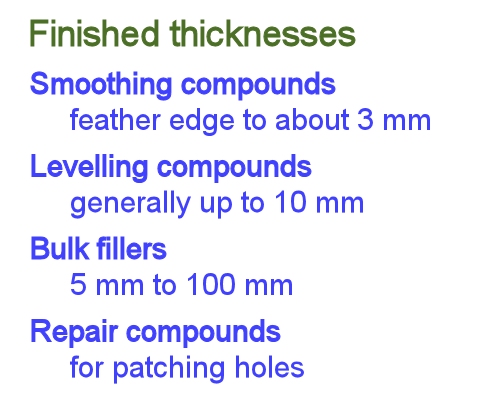

Finished thickness

The amount of body or slump in the compounds can also be categorised in terms of the product's finished thickness on the floor. For example:

  • Smoothing compounds are applied in one pass, in thicknesses ranging from a feather edge up to about 3 mm.

  • Levelling compounds are applied in one pass but can often accommodate thicknesses of 10 mm or more.

  • Bulk fillers are applied in one pass, typically in a layer that's at least 5 mm thick and sometimes up to 100 mm.

  • Repair compounds are used for patching holes and compensating for large height differences, and can be built up in separate layers.
hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

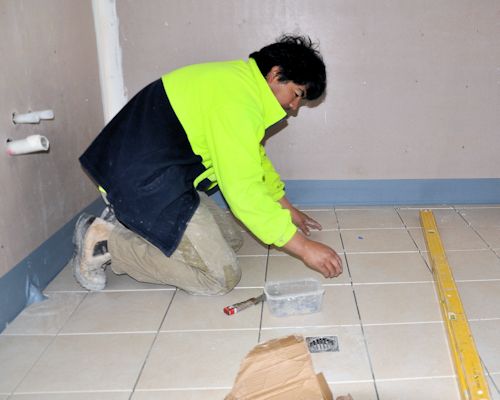

When a levelling compound includes aggregate and is used as a bulk fill, it is often called a screed.

This is the term that floor tilers use for the sand and cement mix that they put under tiles, especially in wet areas where there is a fall in the floor towards the waste pipe.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

Binding agents

Different binding agents are used to give the levelling compounds particular characteristics, such as speed of curing and suitability for certain substrates and adhesives.

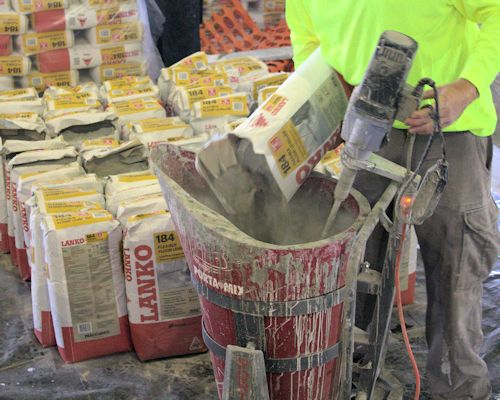

Mineral compounds can be either cement based or calcium sulphate based.

They are mixed with cold water to form a paste and then spread over the floor.

For thicker layers, sand can be added as a filler.

hearing icon
Image for slide 6
Audio for slide 6 (mp3 |6|KB)

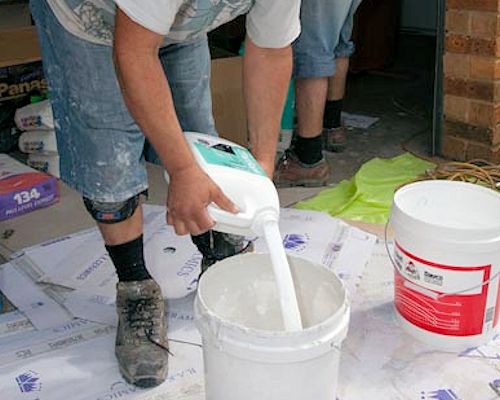

Dispersion compounds contain water-based synthetic resins, mineral fillers and other components.

Most products are ready to use from the container, and don't need to be mixed with water.

Reaction resin compounds are used for patching and grouting.

Most formulations are based on polyurethane or epoxy resin and are supplied as two-part systems which are mixed together immediately before use.

hearing icon

Learning activity

Audio 7 (mp3 |6|KB)

See if you can identify one brand name for each of the compounds listed below.

State the product's brand name and manufacturer. Share your answers with your trainer and other learners in your group.

  • Smoothing compound

  • Levelling compound

  • Bulk filler

  • Repair/patching compound.
