Competencies covered

MSFFL2002: Receive and prepare floor covering materials for installation

Documentation


Image for slide 1
Audio for slide 1 (mp3 |6|KB)
The first step in getting organised for an installation is to pick up the paperwork.

Most companies use a job sheet to list the project details, and a floor covering plan to show the on-site information needed to carry out the installation.

Let's look at each of these documents more closely.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

Job sheet

The job sheet should include the following information:

  • jobsite address and contact details of the person in charge

  • brand names and descriptions of the floor coverings to be laid

  • details of other products to be used, including underlay, adhesive and trims

  • seam placement and other installation details

  • subfloor preparation required

  • furniture and appliances to be moved

  • unusual site conditions or potential problems.

Some of this information is likely to overlap with the floor covering plan, but there are also particulars relating to the specific products used and arrangements that have been made with the client.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

Floor covering plan

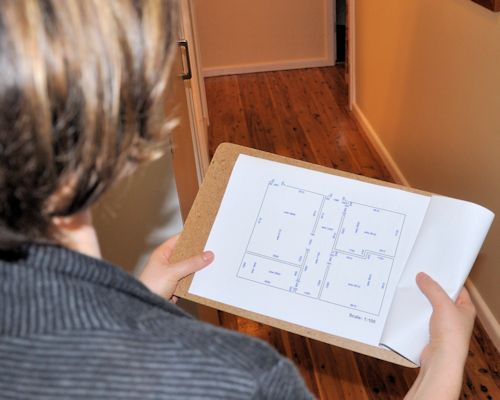

The floor covering plan sets out the details relating to how the flooring will be installed.

Australian Standard 1884 says that the client should be shown a floor covering plan before the installation takes place.

This allows them to confirm that they're happy with it or ask for specific changes to be made before it's too late.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

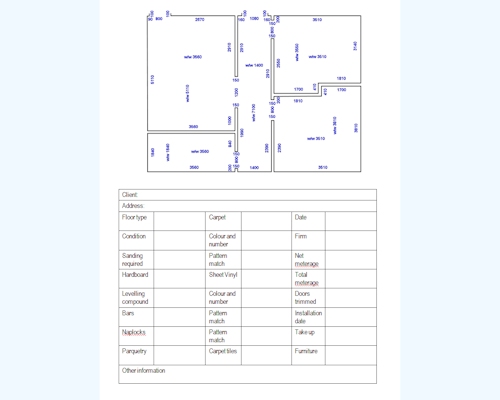

The floor covering plan consists of a proportional sketch or scale drawing of the floor area, together with the following information:

  • specifications of the covering and underlay to be installed

  • positioning of seams and joins

  • direction of the pile, if carpet is being laid

  • types of accessories to be used

  • subfloor preparations required

  • any special features of the job.

For more details about these documents, see: Floor covering plans (Planning and costing).

hearing icon


Learning activity

Audio 5 (mp3 |6|KB)

What sorts of documents do you take with you to the jobsite?

Name each document and list its purpose.

hearing icon
