Competencies covered

MSFFL3001: Plan and cost flooring technology work

Proportional sketches


Image for slide 1
Audio for slide 1 (mp3 |6|KB)
A proportional sketch is the drawing you produce on-site while you're doing the measure-up.

Some installers work with a sheet of blank paper, others use graph paper to help get the proportions right.

Either way, it's best to draw the lines with a pencil and have an eraser on hand so you can correct any mistakes on the spot.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

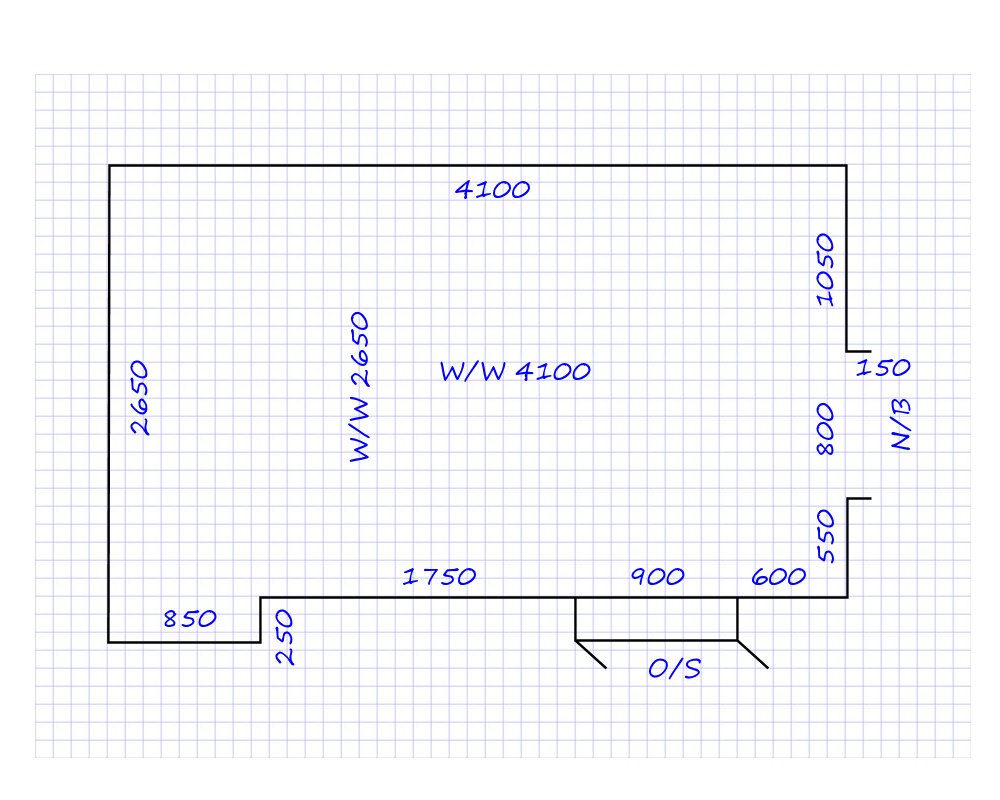

You can see from the above drawing that the symbols and abbreviations used on proportional sketches are much simpler than those used on building plans.

This is because you only need to include the specific information relevant to the flooring installation.

The Just for fun exercise shows some common examples of symbols and abbreviations.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

How to draw a proportional sketch

Here are the basic steps involved in drawing up a proportional sketch.

  1. Walk around the room and look at its general size and geometry. If any furniture or obstacles are in the way, have a look at the ceiling to get an idea of the room's shape.

  2. Draw an outline of the room, showing its shape and features. Leave some space around the outside of the drawing and position the main entrance at the bottom.

  3. Mark in details such as doors, fireplaces, stairs, wardrobes, projections and recesses.

  4. Take 'running' measurements around the room and write them on the sketch as you go. Put the figures on the inside of the perimeter walls. Do the wall to wall (w/w) measurements first and then the running measurements.

  5. Check the running measurements against the w/w measurements. If they're not within 30 mm of each other, take the measurements again to see where the error is.

  6. Double-check that all necessary details and room features are recorded on the sketch.
hearing icon


Learning activity

Audio 4 (mp3 |6|KB)

Choose a room that's suitable for measuring up and drawing as a proportional sketch. It could be the room you're in right now. Get a tape measure, pencil, eraser, ruler and a sheet of blank paper or graph paper.

Follow the steps described in this lesson to draw a proportional sketch of the room.

Show the finished sketch to your trainer. If you're undertaking this unit with other learners, compare your sketches and see if there are any discrepancies.

hearing icon

  Go to  Scale drawings
