Competencies covered

MSFFL2006: Prepare, select and apply smoothing and patching compounds

MSFFL2007: Select and apply appropriate compounds and additives

MSFFL2009: Select, prepare and apply moisture barriers and damp proof membranes to concrete sub-floors

Preparing timber substrates


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

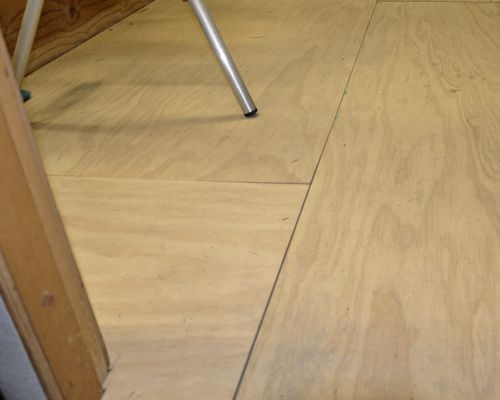

Timber surfaces include plywood and particleboard sheeting and solid tongue-and-groove boards.

Solvents and strippers don't work well on timber floors, so you'll need to remove contaminants by sanding down to bare wood.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

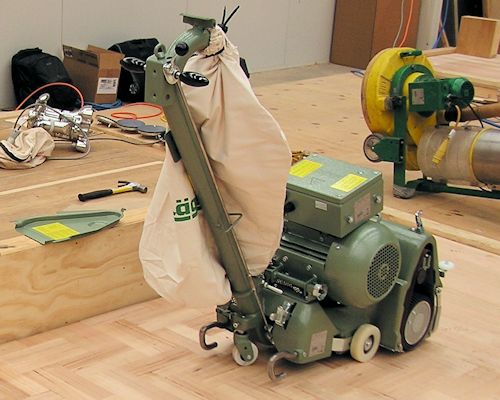

Drum sanders are best on floors that need a lot of material removed.

Belt sanders provide a finer finish, but get clogged up more easily, so they are most effective when the surface only needs to be lightly sanded.

Orbital 'edgers' are used around skirting boards and corners.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

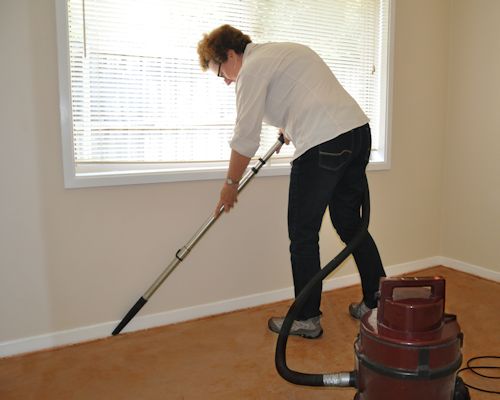

Once the sanding is completed, vacuum up all dust with an industrial vacuum cleaner.

Also check that all boards or sheets are well fixed and there are no squeaks or movement underfoot.

Re-nail or screw any loose boards or panels.

Cement-based toppings should not be used on a particleboard substrate unless the manufacturer recommends it.

This is because the particleboard is less tolerant of the high levels of moisture in the fresh underlayment than plywood or solid hardwood flooring.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

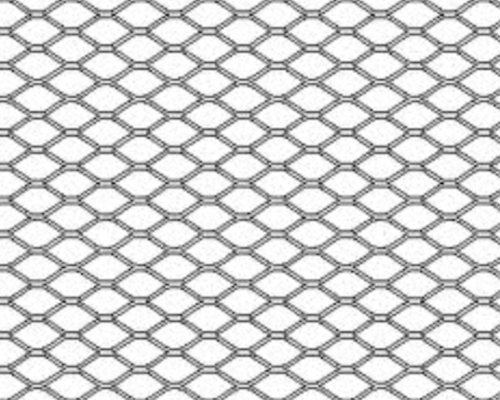

Where cement-based toppings are used on wooden subfloors, a diamond metal mesh should be put down first.

Installers often use 12 mm 'tilers lath', which provides a strong support structure for the underlayment to bond to.

hearing icon


Learning activity

Audio 5 (mp3 |6|KB)

The link below will take you to a YouTube tutorial produced by 'Allaboutflooring' on how to prepare and sand a timber subfloor. Have a look at this clip now.

Hardwood flooring subfloor preparation

Have you been involved in sanding a timber subfloor?

Did you do anything differently from the way it's shown in this clip?

If so, describe the differences.
